A diesel pickup can appear to be running normally and still become the ignition point for a catastrophic vapour-cloud fire. In a widely cited U.S. refinery case, OSHA reported that an idling diesel pickup was considered the most likely ignition point in an explosion that killed 15 people and injured nearly 200. That incident occurred outside the UAE, but the underlying hazard is universal: internal-combustion engines can discharge hot particles, create high surface temperatures, release flames after incomplete combustion, and ingest flammable vapours.

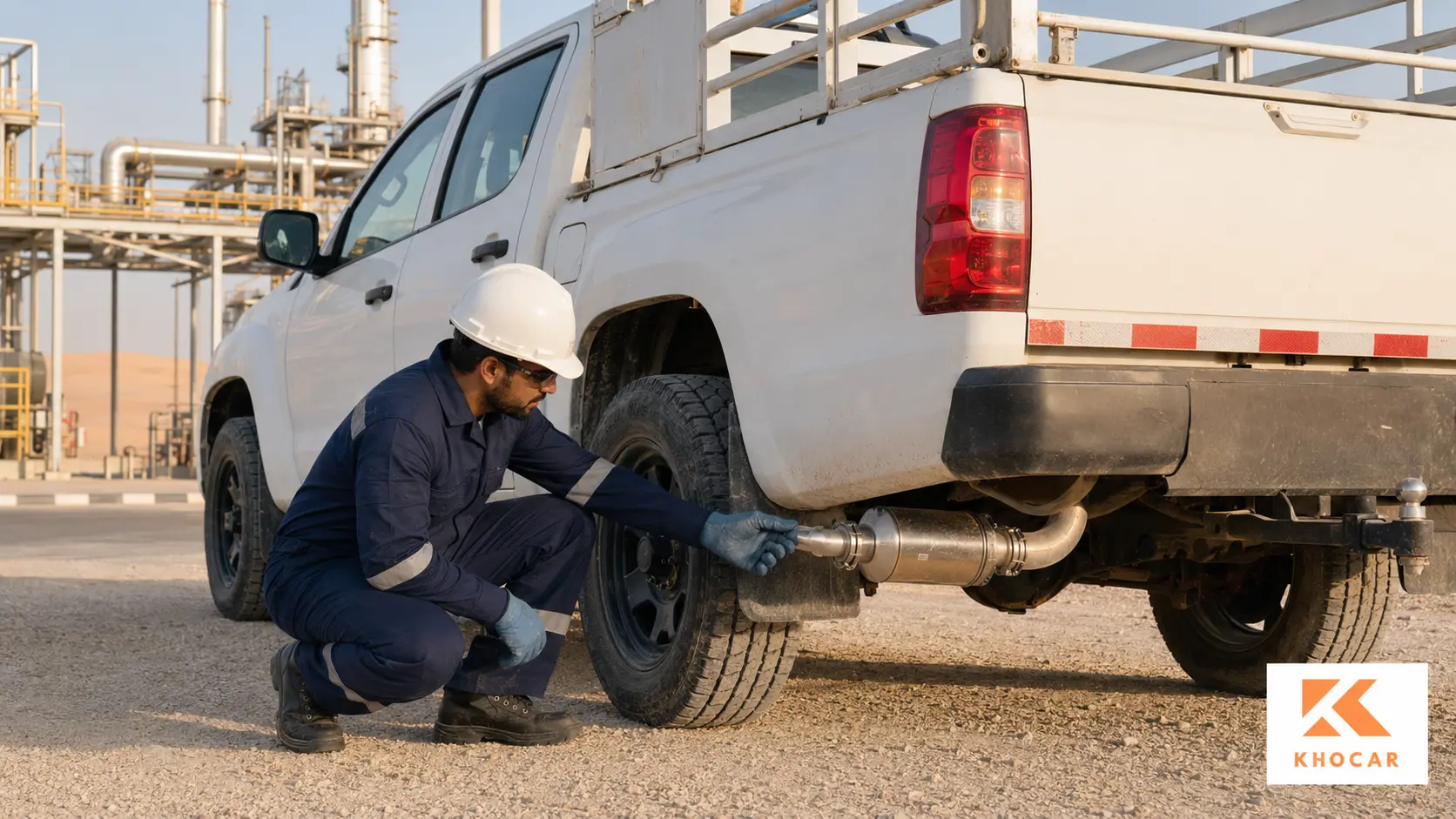

A correctly selected diesel engine spark arrestor UAE contractors can document and maintain is therefore an important layer of exhaust protection for vehicles and mobile equipment entering certain oilfield hazardous areas. It is not, however, a complete Zone 2 conversion by itself. The arrestor addresses one exhaust pathway; it does not control every electrical, thermal, static, intake, or shutdown risk on the vehicle.
This guide explains how diesel spark arrestors work, where they fit into a Zone 2 safety system, how they differ from flame arrestors and air-intake shutdown valves, what inspectors may review, and what UAE fleet teams should confirm before installation.
Key Takeaways
- A diesel exhaust spark arrestor is designed to stop or render harmless hot carbon particles before they leave the exhaust and reach a flammable atmosphere.
- A spark arrestor is not a complete Zone 2 conversion. Hot surfaces, electrical circuits, static discharge, gas detection, emergency isolation and diesel runaway require separate controls.
- Spark arrestors, exhaust flame arrestors, mufflers, diesel particulate filters and air-intake shutdown valves perform different jobs; one should not be assumed to replace another without documented technical approval.
- Selection must consider engine output, exhaust flow, pipe diameter, allowable backpressure, mounting orientation, temperature, corrosion, aftertreatment and the exact site or project requirement.
- For ADNOC-related work, obtain the current written requirement from the relevant project, asset, EPC contractor or HSE team. There is no responsible one-size-fits-all answer for every vehicle and operating area.
- A clean certificate cannot compensate for a leaking exhaust, wrong component, unapproved modification, missing serial-number traceability or an arrestor that is damaged or blocked.
Quick answer: A diesel engine spark arrestor protects a hazardous-area vehicle by controlling incandescent exhaust particles that could otherwise escape from the tailpipe and ignite a flammable gas or vapour mixture. It must be correctly sized, installed, documented and maintained, and it works as one part of a wider ignition-control system.
What Is a Diesel Engine Spark Arrestor?
A diesel engine spark arrestor – also written as spark arrester – is an exhaust-system device intended to control the discharge of hot, glowing or burning solid particles. Diesel combustion can produce carbonaceous material. Under certain engine conditions, carbon deposits or incompletely burned material can become hot enough to remain incandescent as they travel through the exhaust. If a sufficiently energetic particle reaches a flammable atmosphere, it can become an ignition source. [USDA spark-arrestor guide]
The word “spark” can be misleading. The main concern is not necessarily an electrical spark or a spark plug – diesel engines do not depend on spark plugs for normal ignition. The concern is hot exhaust-borne material, together with possible flames or high-temperature surfaces elsewhere in the exhaust system.
The U.S. Forest Service describes general-purpose arrestors that trap, separate, or pulverize carbon particles. Its qualification program uses application-specific tests, including an 80% collection requirement for particles above 0.023 inch (approximately 0.584 mm). Those figures belong to that particular forestry test regime; they are useful engineering context, not an automatic UAE oilfield acceptance criterion. [USDA]
Why Zone 2 Changes the Risk
What does Zone 2 mean?
Zone 2 is an area in which an explosive gas atmosphere is not likely to occur during normal operation and, if it does occur, it is expected to exist only for a short time. The lower probability of a release does not make ordinary ignition sources acceptable. The UK Health and Safety Executive specifically notes that mobile equipment must be considered and that ordinary vehicles contain multiple potential ignition sources. [HSE]
A standard diesel vehicle can introduce several hazards at once
- Incandescent particles discharged through the exhaust.
- Flames or backfire associated with incomplete combustion or abnormal engine operation.
- Exhaust manifolds, turbochargers, pipes and aftertreatment surfaces above the permitted temperature class.
- Electrical arcing or sparking from starters, alternators, relays, switches, damaged wiring and aftermarket accessories.
- Electrostatic discharge from the vehicle, mounted equipment or transfer activities.
- Flammable gas or vapour entering the diesel air intake, causing overspeed or runaway.
- Mechanical heat or sparks from brakes, bearings, friction, impact or damaged rotating equipment.
OSHA’s internal-combustion-engine guidance explains that fuel-rich operation can raise engine and exhaust temperatures, produce incomplete combustion and discharge sparks or flames. It also lists mobile engines, contractor vehicles, generators, pumps, cranes, well-servicing equipment and drilling machinery among the equipment that can act as ignition sources. [OSHA]
How Does a Diesel Spark Arrestor Work?
Industrial diesel spark arrestors commonly use a centrifugal or trap principle. The device changes the direction and velocity of the exhaust stream so particles with greater mass cannot follow the gas path as easily as the gas itself. Depending on the design, the particles strike an internal surface, lose energy, are retained in a collection area, or remain inside long enough to burn out and become inert.
- Hot exhaust and entrained carbon particles enter the arrestor from the engine exhaust pipe.
- Internal vanes, chambers, or a twin-centrifuge geometry create a rotating gas flow.
- Heavier particles are driven toward the outer wall instead of travelling directly to the outlet.
- The particles are trapped, broken down or retained until their ignition energy is reduced.
- The treated exhaust gas exits, subject to the arrestor’s approved flow range, mounting position and backpressure limits.
Pyroban, an explosion-protection equipment manufacturer, describes ATEX-approved centrifugal arrestors that spin live carbon particles against the outer casing, where they are retained until rendered inert. Its current range also emphasizes low backpressure, because modern diesel engines can be sensitive to exhaust restriction. [Pyroban]
Common arrestor designs
| Design | Principle | Typical use | Main caution |
| Centrifugal / cyclone | Uses rotating flow to separate heavier particles from exhaust gas. | Industrial diesel engines; robust flow applications. | Must match engine flow, orientation and pressure limits. |
| Trap/screen | Physically retains particles above the screen opening. | Smaller engines and some general-purpose applications. | Can foul or block; inspection and cleaning are critical. |
| Fallout chamber | Reduces gas velocity so heavier particles settle. | Specialized or older applications. | Typically bulky for mobile equipment. |
| Integrated spark-arresting silencer | Combines acoustic attenuation and spark control in one tested unit. | Where both noise and particle control are needed. | Confirm that both functions and the exact application are documented. |
Source note: Design categories synthesized from USDA and manufacturer technical descriptions; the accepted design depends on the project and approved component documentation.
What a Spark Arrestor Prevents – and What It Cannot Prevent
| Hazard | Controlled by a spark arrestor? | What else may be needed |
| Hot carbon particles at the exhaust outlet | Yes – this is its core function when correctly selected and maintained. | Does not remove every other exhaust or vehicle ignition hazard. |
| Excessively hot exhaust surfaces | Not by itself. | May require insulation, guarding, cooling, heat exchangers, routing controls or thermal testing. |
| A flame travelling through an intake or exhaust path | Not necessarily. | A purpose-designed flame arrestor addresses flame transmission; verify the system design. |
| Diesel runaway caused by ingested vapour | No. | Requires an effective air-intake shutoff/overspeed protection strategy. |
| Electrical sparks or unsafe accessories | No. | Requires electrical assessment, isolation and suitable components. |
| Static discharge | No. | Requires the applicable bonding, earthing or anti-static controls. |
| Gas detection and automatic shutdown | No. | Requires sensors, calibration, alarms, control logic and tested final elements. |
Critical distinction: Installing a spark arrestor can reduce one exhaust-particle risk while leaving the vehicle unsuitable for the intended Zone 2 task. The correct question is not “Does it have an arrestor?” but “Does the complete vehicle configuration control the ignition sources identified by the project assessment?”
Spark Arrestor vs Other Diesel Safety Components
| Component | Primary function | Risk pathway |
| Spark arrestor | Controls hot solid particles leaving the exhaust. | Exhaust stream. |
| Exhaust flame arrestor | Limits flame propagation through the exhaust path. | Exhaust path; application-specific. |
| Intake flame arrestor | Limits flame transmission through the air-intake path. | Air intake. |
| Air-intake shutoff / Chalwyn-type valve | Cuts off combustion air to stop diesel overspeed or runaway. | Engine air intake. |
| Muffler / silencer | Reduces exhaust noise. | Exhaust acoustics; not automatically a certified spark arrestor. |
| Diesel particulate filter (DPF) | Captures fine particulate emissions and periodically regenerates. | Emissions aftertreatment; substitution depends on the governing test and site acceptance. |
| Exhaust gas cooler / heat exchanger | Reduces exhaust-gas or surface temperature. | Thermal ignition risk and temperature-class compliance. |
Spark arrestor vs flame arrestor
A spark arrestor and a flame arrestor are not interchangeable names. A spark arrestor focuses on hot solid particles. A flame arrestor is designed to prevent a flame front from propagating through a gas path under defined conditions. The difference is visible in complete explosion-protection engine kits: Pyroban lists an exhaust flame arrestor and a certified spark arrestor as separate components in a typical kit. [Pyroban engine-kit example]
Spark arrestor vs air-intake shutoff valve
The air-intake shutoff valve addresses a different diesel-specific failure mode. If hydrocarbon vapour enters the intake, it can become an uncontrolled fuel source. Turning the key off may stop normal fuel injection but may not stop an engine that continues to run on vapour. OSHA therefore identifies positive air shutoff or automatic overspeed shutdown as a protective measure for mobile engines in flammable-material areas. [OSHA]
For a deeper explanation, read KhoCAR’s guide to diesel runaway and Chalwyn valves for Zone 2 vehicles.
Can a DPF replace a spark arrestor?
Do not answer this from appearance alone. Some test regimes recognize a wall-flow DPF as an alternative spark-control method when 100% of the exhaust passes through it and defined monitoring conditions are met. An Australian industry position paper, drawing on AS 1019 and USDA criteria, describes that position for certain earthmoving machinery. That does not automatically satisfy an Abu Dhabi oilfield project, an ATEX/IECEx integration requirement or a site-specific inspection scope. [CMEIG position paper]
A DPF also introduces thermal considerations during active regeneration. Cummins warns that higher-than-normal exhaust temperatures may occur during regeneration and advises operators to keep the outlet away from hazardous materials. Accordingly, a fleet team should obtain written confirmation from the engine manufacturer, conversion specialist and accepting HSE authority before treating a DPF as equivalent to a dedicated spark arrestor. [Cummins]
UAE Oilfield and ADNOC-Related Compliance Context
A frequent procurement question is: “Does every diesel vehicle entering an ADNOC site need the same spark arrestor?” The responsible answer is no. The scope can vary with the ADNOC Group Company or asset, EPC contractor, exact classified area, vehicle category, route, task, onboard equipment, engine operating mode, gas group, temperature class and current project documentation.
A crew vehicle allowed only on a designated road is not the same as a service truck that parks with its engine running near process equipment. A trailer-mounted generator, compressor, crane, wireline unit or mobile workshop introduces additional systems that must be included in the ignition-source assessment.
Standards and documents that may inform the assessment
- The project’s latest written HSE, site-access, hazardous-area or vehicle-inspection requirement.
- The hazardous-area classification drawing and identified gas group or temperature class.
- IEC 60079-10-1 for classification of areas where explosive gas atmospheres may occur.
- ATEX Directive 2014/34/EU and relevant harmonized standards when ATEX equipment or assemblies are specified.
- IECEx certificates and schedules when IECEx conformity is required.
- EN 1834-1 or other applicable engine/explosion-protection standards for reciprocating engines used in gas and vapour atmospheres.
- Component certificates, installation instructions, limitations, serial numbers and test records.
ATEX and IECEx are not casual marketing labels. The certificate schedule, equipment category or protection level, gas group, temperature class, ambient range, special conditions of use and integration limitations all matter. For example, one current manufacturer’s Zone 2 diesel-engine kit is described as Group II, Category 3G, Gas Group IIA and Temperature Class T3, with a warning to consult the supplier above 45°C ambient. That is a product-specific example, not a universal specification – but the ambient warning is especially relevant to UAE summer operation. [Pyroban]
Temperature class is about maximum surface temperature
| Temperature class | Maximum equipment surface temperature | Associated ignition-temperature band |
| T1 | 450°C | Gas/vapour ignition temperature above 450°C |
| T2 | 300°C | Above 300°C |
| T3 | 200°C | Above 200°C |
| T4 | 135°C | Above 135°C |
| T5 | 100°C | Above 100°C |
| T6 | 85°C | Above 85°C |
Source note: HSE hazardous-area guidance. The actual required class depends on the flammable material and the project classification; this table is not a vehicle approval checklist.
International benchmark: offshore diesel-engine rules
As an international comparison, current U.S. offshore regulations in 30 CFR 250.856 require diesel-engine exhaust piping to have spark arresters and diesel air intakes to have runaway shutdown protection, subject to stated exceptions. This is not UAE law and should not be presented as an ADNOC requirement. It is useful because it shows that mature safety regimes treat exhaust spark control and intake shutdown as separate safeguards. [eCFR]
Before commissioning, use KhoCAR’s Zone 2 vehicle conversion checklist for ADNOC-related site access to collect the vehicle, project and documentation details needed for assessment.
How to Select the Correct Diesel Engine Spark Arrestor
A spark arrestor should be engineered into the exhaust system, not selected only because its inlet appears to fit the tailpipe. A mismatched device can create excessive backpressure, raise thermal stress, interfere with aftertreatment, reduce engine output or fail to control particles under the actual duty cycle.
| Selection factor | What to verify |
| Engine identity | Manufacturer, model, displacement, rated power, governed speed and duty cycle. |
| Exhaust flow | Maximum mass or volumetric flow at rated operating conditions. |
| Pipework | Diameter, connection type, routing, support, flexible sections and available space. |
| Backpressure | OEM maximum allowable exhaust restriction, including all silencers and aftertreatment. |
| Orientation | Horizontal, vertical or multi-position approval and drainage/cleanout needs. |
| Temperature | Exhaust-gas temperature, surface temperature, ambient range and required temperature class. |
| Material | Corrosion resistance for salt, humidity, desert dust, vibration and offshore exposure. |
| Aftertreatment | Turbocharger, oxidation catalyst, DPF, SCR, sensors and regeneration strategy. |
| Documentation | Certificate, data sheet, installation manual, serial/model marking and special conditions. |
| Project acceptance | Written confirmation that the proposed component and configuration meet the accepting site’s scope. |
Backpressure deserves special attention
Every restriction in the exhaust path consumes part of the engine manufacturer’s allowable backpressure budget. The total includes pipe bends, silencers, catalysts, DPF/SCR equipment, guards or coolers that affect flow, and the arrestor itself. A clean device may be acceptable while the same device becomes restrictive after carbon accumulation or internal damage. Confirm the limit using the engine and arrestor documentation, then test or measure as the application requires.
Installation and Commissioning: What Good Work Looks Like
- Confirm the written requirement. Identify the site, zone, task, vehicle operating mode and accepting inspection process before selecting parts.
- Record the as-received vehicle. Capture make, model, VIN or fleet number, engine data, exhaust layout, aftertreatment and all non-factory equipment.
- Complete an ignition-source assessment. Review exhaust, intake, electrical, static, thermal, control and mechanical risks as one system.
- Select a traceable component. Match the arrestor’s certified or tested application, size, flow, orientation, temperature and backpressure range.
- Design proper mounting. Provide suitable supports, clearances, discharge direction, flexible joints where needed and access for inspection or cleaning.
- Inspect the full exhaust path. Correct leaks, cracks, loose joints, corrosion and unsafe surfaces; do not allow exhaust to bypass the protective device.
- Commission the installation. Check for leaks, vibration, abnormal noise, engine faults, pressure restriction and thermal concerns under suitable test conditions.
- Build the vehicle-specific file. Include the scope, data sheet, certificate schedule, serial numbers, installation record, photographs and test evidence.
- Freeze the approved configuration. Route later exhaust repairs or accessory changes through a documented change review before returning to service.
Do not self-certify: This article is an informational guide, not an installation procedure or certificate. Exhaust modification, hazardous-area integration and inspection should be handled by competent personnel using the vehicle, engine, component and project documentation.
Inspection and Maintenance Checklist
Maintenance frequency should come from the arrestor manufacturer, engine duty cycle and project requirements. High-load operation, poor combustion, frequent idling, oil consumption, dust, corrosion and exhaust repairs can justify more frequent checks. Avoid inventing a universal “every X hours” interval where the component manual specifies something different.
- Verify the manufacturer, model and identification marking remain legible.
- Confirm the installed unit matches the vehicle’s current document file.
- Check mounting brackets, clamps, supports and flexible joints for looseness or fatigue.
- Inspect for cracks, holes, corrosion, dents and impact damage.
- Check every upstream joint for evidence of exhaust leakage or carbon staining.
- Inspect the outlet, internal path or collection chamber according to the manufacturer’s method.
- Remove accumulated carbon only by the approved procedure and only after the system has cooled.
- Confirm that no internal vanes, screens, cleanout plugs or retention parts are missing or altered.
- Review backpressure or engine fault evidence where restriction is suspected.
- Check nearby heat shields, insulation, guards and clearances.
- Confirm that an exhaust repair, muffler replacement or DPF/SCR intervention has not changed the approved arrangement.
- Record the date, findings, corrective work, replacement part, technician and verification result.
USDA inspection guidance illustrates several transferable checks: verify correct installation, look for heavy carbon or corrosion, confirm that the exhaust pipe has no cracks or holes, ensure tight connections, inspect for dents and verify that internal parts have not been removed. The exact method for an oilfield component must still follow its own manual and site requirements. [USDA]
Signs the arrestor or exhaust system needs attention
- Loss of engine power, abnormal turbo response or an exhaust-restriction fault.
- Higher-than-normal exhaust or engine temperature.
- Black smoke, worsening combustion quality or unusual carbon discharge.
- Rattling, vibration or movement at the arrestor mounting.
- Visible cracks, corrosion, missing cleanout hardware or a loose outlet.
- Carbon staining around a joint, suggesting an upstream leak.
- A component label that cannot be matched to the certificate or vehicle record.
- Any change to the exhaust, aftertreatment, engine calibration or vehicle duty.
Practical Example: Preparing a Diesel Service Pickup
Consider a diesel service pickup assigned to an Abu Dhabi oilfield project. The vehicle will carry technicians and tools, travel on an approved route and occasionally remain idling near a controlled operating area. It also has a canopy, work lights, an inverter, a second battery and a non-factory exhaust repair.
A weak approach would be to weld an unverified arrestor onto the tailpipe, photograph it and assume the vehicle is “Zone 2 ready.” That approach ignores the leaking or modified exhaust, component sizing, added electrical circuits, intake runaway risk, static controls, gas detection logic, temperature considerations and document traceability.
A defensible approach starts with the latest written site scope and a vehicle-specific survey. The provider confirms the engine and exhaust data, assesses the repaired pipework, selects a documented arrestor, checks allowable backpressure, mounts it with service access, and inspects the complete exhaust path. The other safety systems are reviewed separately and then tested as an integrated vehicle configuration. The resulting file ties the vehicle identity to the installed models, serial numbers, certificates, photographs and functional checks.
KhoCAR’s guide to common Zone 2 vehicle inspection failures explains why a present-but-defective spark arrestor, an untraceable certificate or a later vehicle modification can still lead to corrective work.
Common Spark-Arrestor Mistakes to Avoid
| Mistake | Why it creates risk or rework |
| Buying by pipe diameter alone | Fit is not proof of correct flow, backpressure, temperature or hazardous-area suitability. |
| Treating a muffler as a spark arrestor | A silencer’s acoustic function does not prove tested particle control. |
| Ignoring upstream leaks | Hot exhaust can escape before reaching the arrestor. |
| Assuming the DPF settles the question | Equivalence depends on design, test criteria, regeneration hazards and site acceptance. |
| Copying another vehicle’s certificate | The engine, exhaust, serial numbers, accessories and use case may be different. |
| Welding without change control | Fabrication can alter materials, mounting, temperature, certification or exhaust restriction. |
| Skipping maintenance records | Inspection cannot verify continued condition or traceability. |
| Adding accessories after inspection | New electrical or mechanical ignition sources may invalidate the assessed configuration. |
Pre-Mobilization Questions for Fleet and HSE Teams
- What exact site, asset, project and classified area will the vehicle enter?
- Will the engine be switched off, idling or powering mounted equipment?
- What written vehicle and hazardous-area requirements apply?
- Which gas group, equipment protection level/category and temperature class are specified?
- Is a dedicated spark arrestor required, or is another tested configuration accepted in writing?
- Does the selected component match the engine flow, allowable backpressure and exhaust layout?
- Are exhaust flame control, intake runaway protection and gas shutdown addressed separately?
- Can every installed component be tied to a model, serial number, certificate and limitation schedule?
- Has the complete system been inspected and tested after installation?
- Has any repair or accessory change occurred since the last inspection?
If the vehicle category is still unclear, see which vehicles may need Zone 2 conversion for ADNOC projects in the UAE.
Need Zone 2 Vehicle Installation and Certification Support in Abu Dhabi?
A spark arrestor should be part of a vehicle-specific safety solution, not an isolated tailpipe accessory. KhoCAR can review the vehicle, intended oilfield use and written project requirement; assess the exhaust and other ignition-source controls; install appropriate Zone 2 systems; and prepare the vehicle-specific documentation needed for inspection readiness.
Learn more about KhoCAR’s Zone 2 installation and certification services in Abu Dhabi.
FAQs
What is a diesel engine spark arrestor?
It is an exhaust device that controls hot carbon particles capable of leaving a diesel engine and igniting nearby combustible material or a flammable atmosphere. It is one ignition-control component, not a complete hazardous-area conversion.
How does a diesel spark arrestor work?
Many industrial models use centrifugal flow. Exhaust gas is made to rotate so heavier incandescent particles strike an internal surface, are retained or lose energy, while the treated gas continues to the outlet.
Are spark arrestors required on all Zone 2 vehicles in the UAE?
Not every vehicle has an identical requirement. The answer depends on the site, zone, vehicle, engine, task and written project or HSE scope. Obtain the current requirement before choosing or installing equipment.
Does a spark arrestor make a diesel vehicle Zone 2 compliant?
No. It addresses exhaust-borne hot particles. A complete assessment may also cover hot surfaces, exhaust flame control, air-intake shutdown, gas detection, electrical systems, static control, emergency isolation and documentation.
What is the difference between a spark arrestor and a flame arrestor?
A spark arrestor controls hot solid particles. A flame arrestor is designed to stop flame propagation through an intake or exhaust gas path under defined conditions. Some protected engines use both.
Is a spark arrestor the same as a Chalwyn valve?
No. A spark arrestor is installed in the exhaust to control hot particles. A Chalwyn-type valve is fitted in the air intake to shut off combustion air if a diesel engine overspeeds or runs on external vapour.
Can a diesel particulate filter replace a spark arrestor?
Sometimes a specific wall-flow DPF configuration may satisfy a particular test regime, but this cannot be assumed. DPF regeneration also creates high exhaust temperatures. Confirm equivalence with the manufacturer, conversion specialist and accepting authority in writing.
Can a spark arrestor reduce engine power?
A correctly sized clean unit should stay within the engine’s allowable backpressure. A mismatched, damaged or blocked arrestor can increase restriction, reduce performance and raise temperature, which is why sizing and maintenance matter.
How often should a diesel spark arrestor be inspected or cleaned?
Follow the component manufacturer, engine duty cycle and project maintenance requirement. High-load, smoky, dusty or corrosive service may require closer monitoring. Do not substitute a generic interval for the approved manual.
What should be checked during a spark-arrestor inspection?
Check identity markings, mounting, corrosion, cracks, dents, carbon buildup, internal parts, cleanout hardware, exhaust leaks, heat protection and any evidence of abnormal restriction. Record the findings against the vehicle file.
Which vehicles or equipment may need diesel exhaust spark control?
Depending on the site assessment, examples include pickups, service trucks, mobile workshops, generators, compressors, pumps, cranes, wireline units and trailer-mounted oilfield equipment operating near classified areas.
What information should be sent for a Zone 2 vehicle assessment?
Send the make, model, year, VIN or fleet number, engine data, exhaust photographs, aftermarket equipment list, intended task, site requirement, current location and deadline. Include previous certificates or modification records if available.
